How to set up a Microsoft Teams integration with CYPHER Learning

Web conferencing: MS Teams

Overview

The CYPHER Learning platform allows you to integrate with many popular third-party web conferencing systems to schedule meetings directly in the platform.  To learn more about which web conferencing tools are supported, visit the Web conferencing article.

This article will help you set up an integration with MS Teams to schedule meetings using the calendar, by adding a Web conferencing section to a module, and through the HTML editor.

Configuring the MS Teams web conferencing gateway

The MS Teams integration allows users to schedule web conference meetings directly from the calendar, content pages, assessments, and more.

To begin, you must first install the MS Teams app:

  1. Click Admin from the primary navigation menu.
  2. Click App center from the fly-out menu.
  3. Install the MS Teams app from the Web conferencing section.

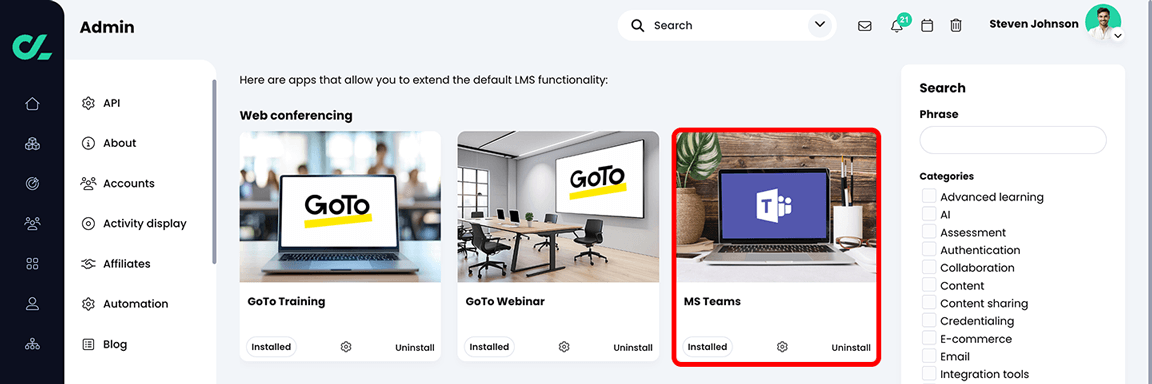

Admin, App center with the MS Teams app highlighted

Once the MS Teams app is installed, follow the steps below to configure your account:

  1. Navigate to https://portal.azure.com/ and login to your account.
  2. Click View in the Manage Microsoft Entra ID section.

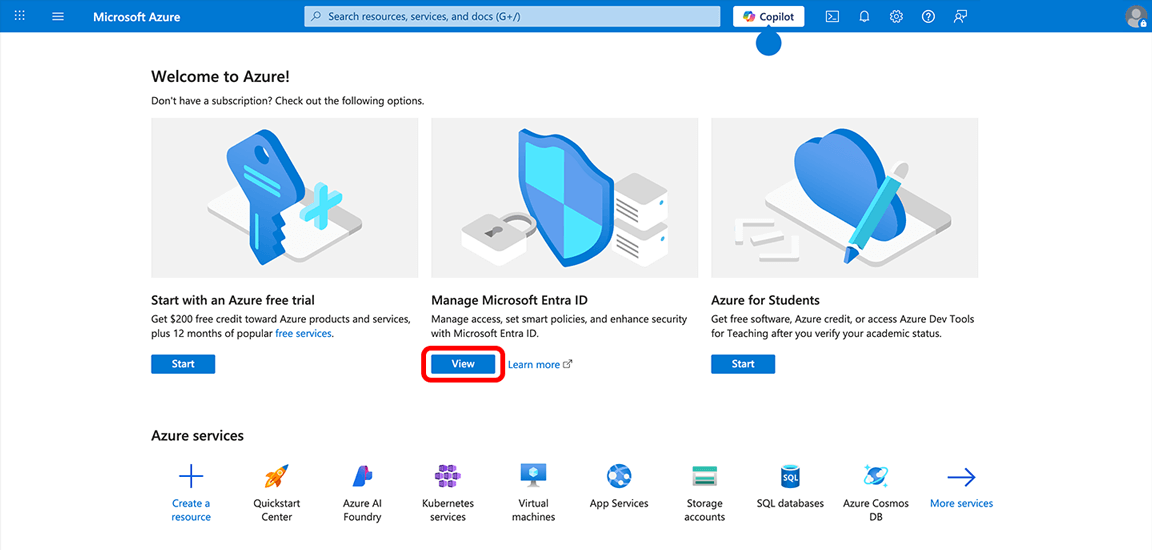

Azure portal with the View button highlighted in the Manage Microsoft Entra ID section

Next:
  1. Click App registrations from the left navigation menu.

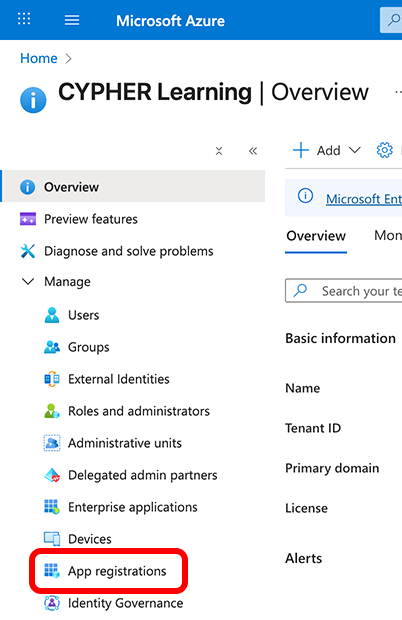

Azure portal, Left menu with the Manage menu active and App registrations highlighted

The App registrations page displays.
  1. Click New registration.

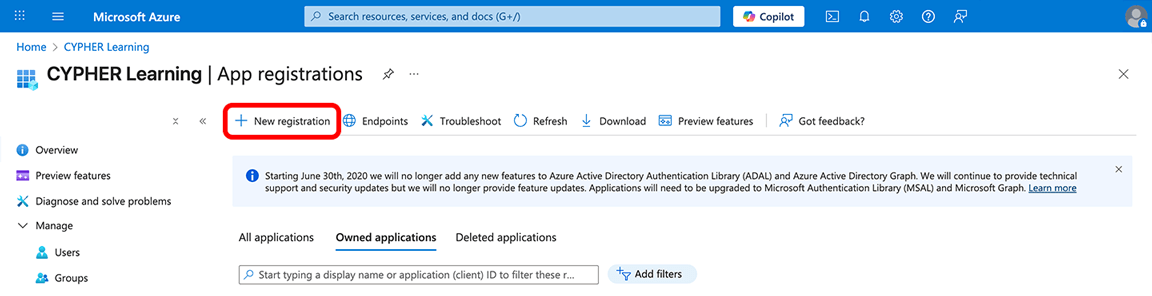

Azure portal, App registrations with the New registration button highlighted

The Register an application page displays.
  1. In the Name field, enter a name for the application. This can be changed later and is only for informative purposes.
  2. Select the Accounts in any organizational directory (Any Microsoft Entra ID tenant - Multitenant) and personal Microsoft accounts (e.g. Skype, Xbox) radio button in the Supported account types section.
Next, you will return to the CYPHER Learning platform to gather information for the Redirect URI.

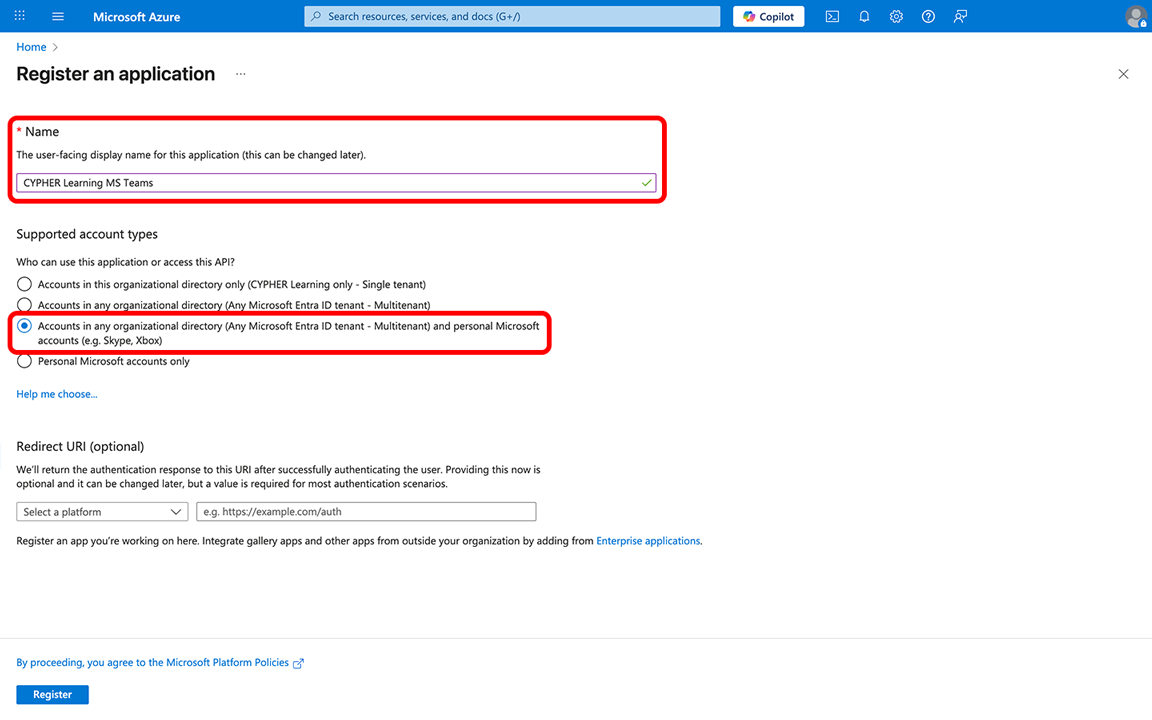

Azure portal, Register an application page with the Name field and Accounts in any organization directory (Any Microsoft Entra ID tenant - Multitenant) and personal Microsoft accounts radio button highlighted

In the CYPHER Learning platform:

  1. Click Admin from the primary navigation menu.
  2. Click MS Teams from the fly-out menu.

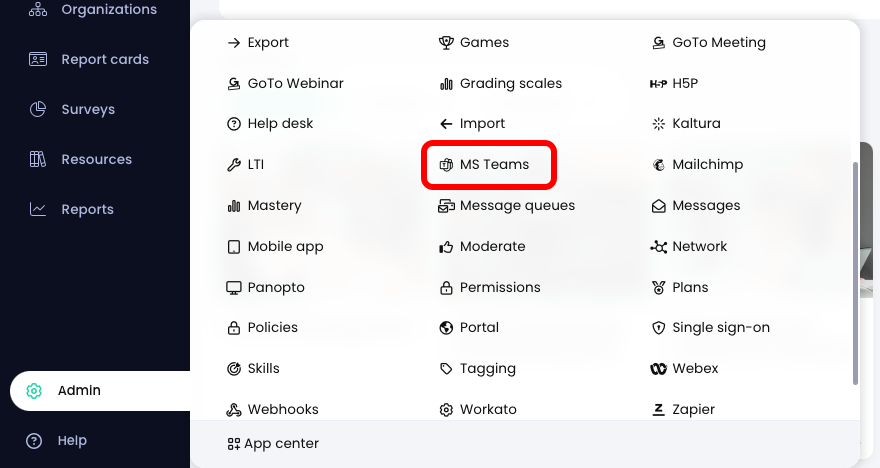

CYPHER platform, Admin menu active with MS Teams highlighted

The MS Teams page displays.
  1. Click Configure.

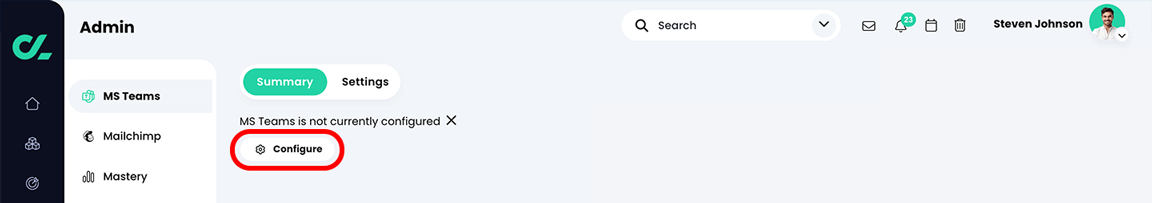

CYPHER platform, MS Teams, Summary tab with the Configure button highlighted

The MS Teams Settings display.

  1. Copy the Redirect URL.
Then, navigate back to the Azure app registration screen.

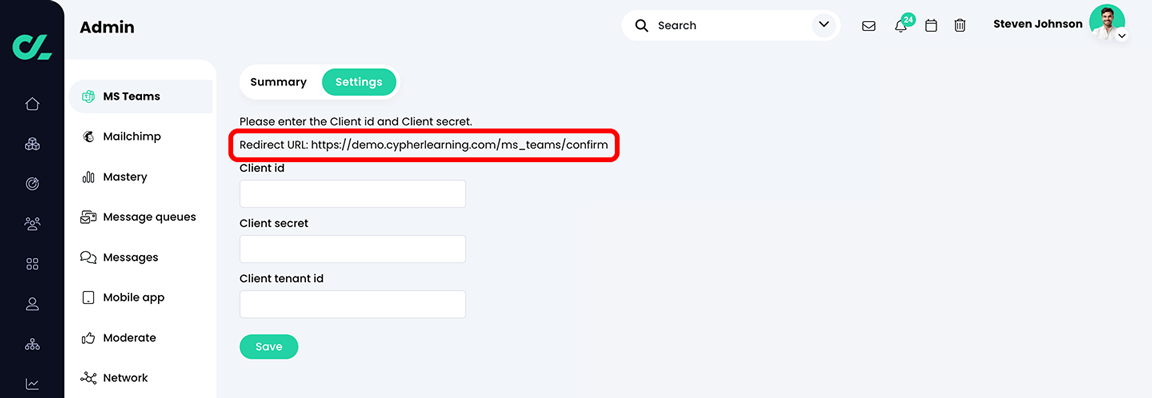

CYPHER platform, MS Teams, Settings tab with the Redirect URL highlighted

On the Register an application page:

  1. Select Web from the first drop-down in the Redirect URI section.
  2. Paste the redirect URL from CYPHER Learning in the Redirect URI field.
  3. Click Register.

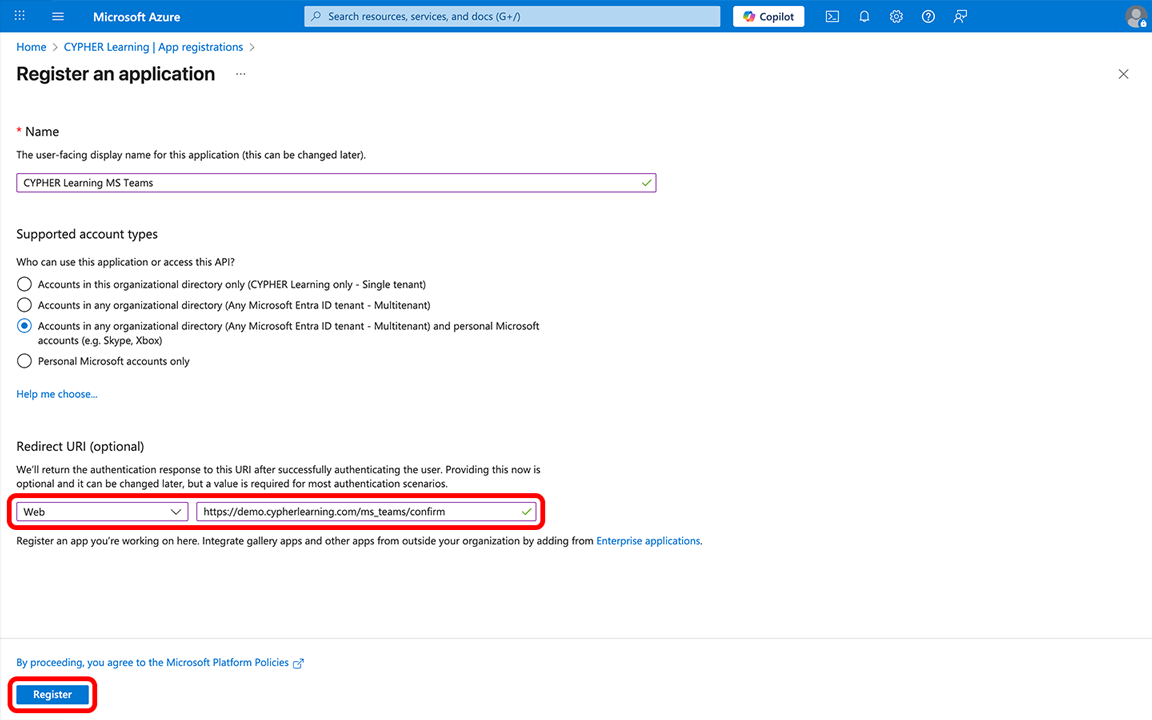

Azure portal, Register an application page with the Redirect URI dropdown menus and the Register button highlighted

The application is registered.

  1. Click API permissions from the left navigation menu.

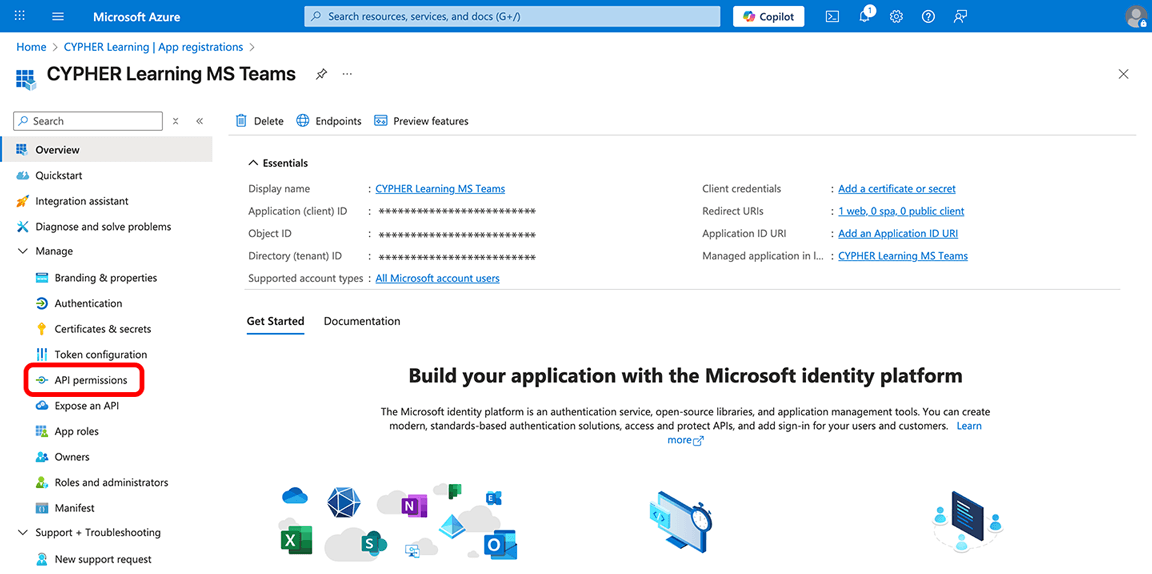

Azure portal with the API permissions button highlighted on the left menu

The API permissions page displays:
  1. Click  + Add a permission.
  2. Click Microsoft Graph.

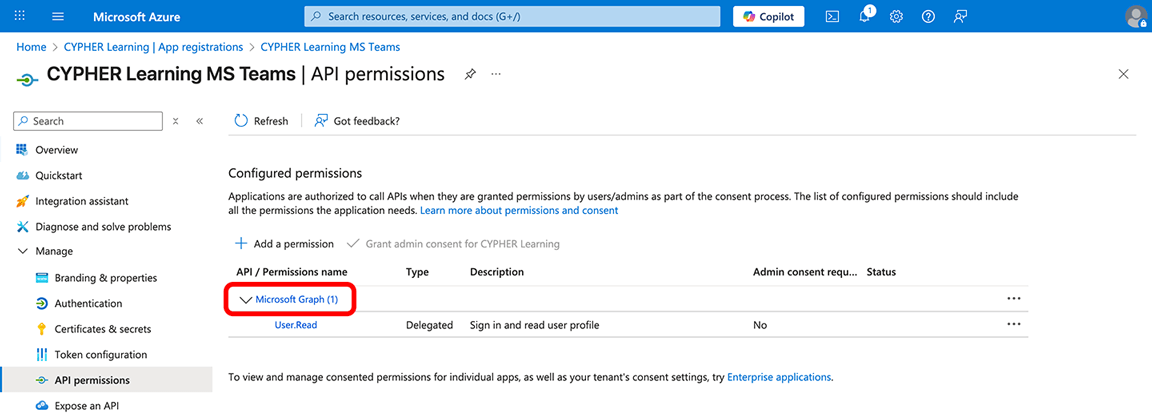

Azue portal, API permissions with the Microsoft Graph link highlighted in the Configured permissions section

On the Request API permissions slide out screen:

  1. Click Delegate permissions.

In the Select permissions section, search for the following permissions and enable them:

  • Calendars.ReadWrite
  • OnlineMeetings.ReadWrite
  • OnlineMeetingArtifact.Read.All
  • User.Read

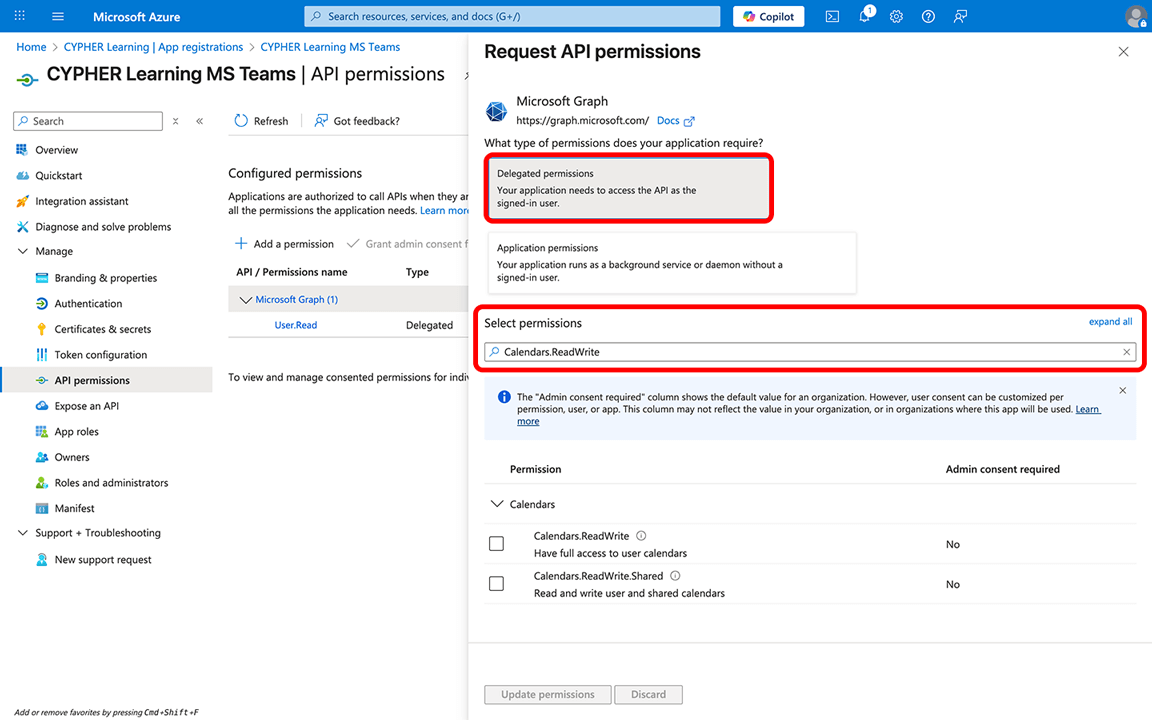

Azue portal, API permissions page with the Delegated permissions and Select permissions sections highlighted on the Request API permissions side menu


The permissions appear under the Microsoft Graph heading in the Configured permissions section.

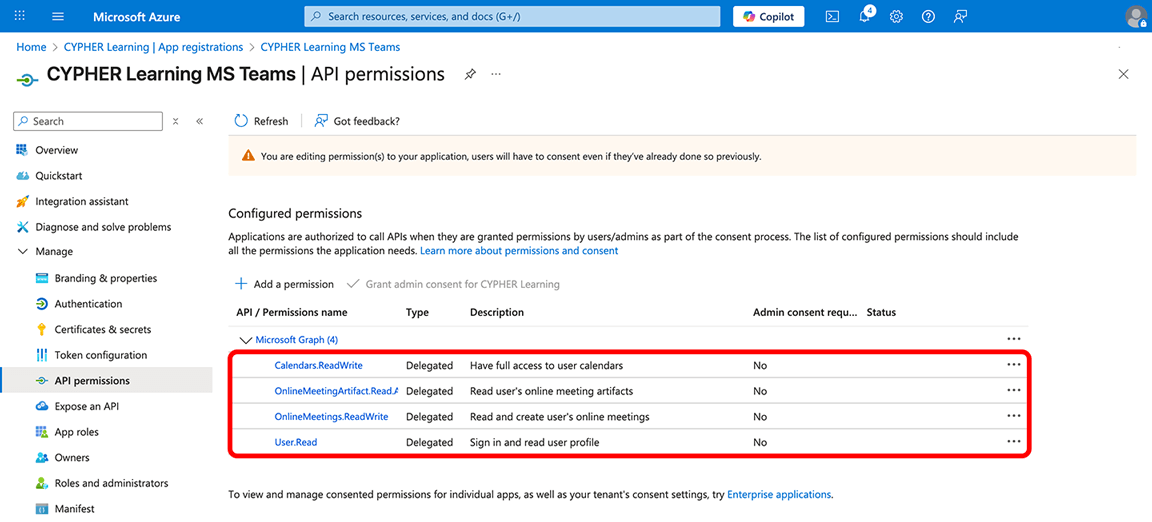

Azure portal, API permissions with the four added delegated permissions highlighted

Next:
  1. Click Certificates & secrets from the left navigation menu.

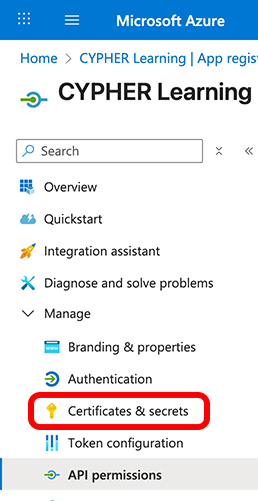

Azure portal, Left menu with the Manage menu active and Certificates & secrets highlighted

The Certificates & secrets page displays.

  1. Click + New client secret.

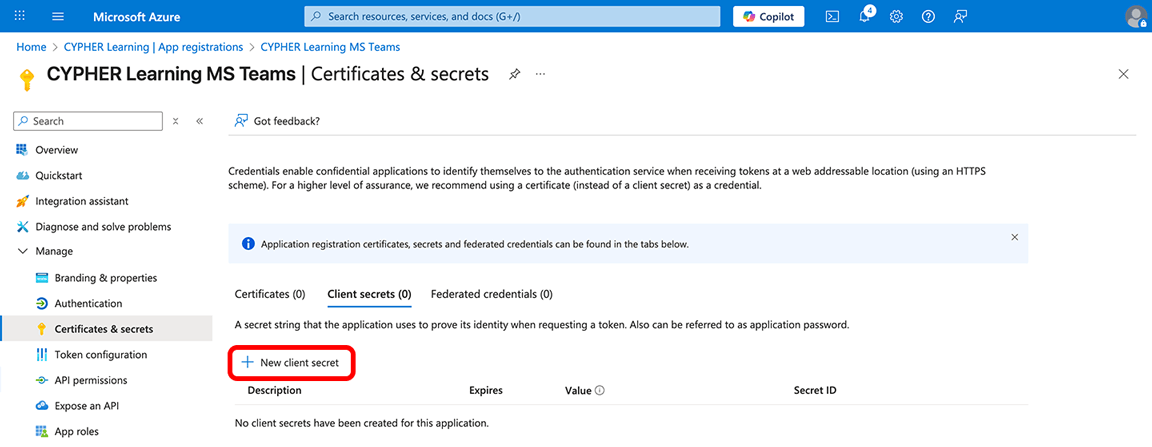

Azure portal, Certificates & secrets with the New client secret button highlighted

The Add a client secret side menu appears.
  1. Enter a Description.
  2. Set an expiration for the secret in the Expires field.
  3. Click Add.

InfoNote: Once the secret expires, you will have to repeat these steps and update the configuration.

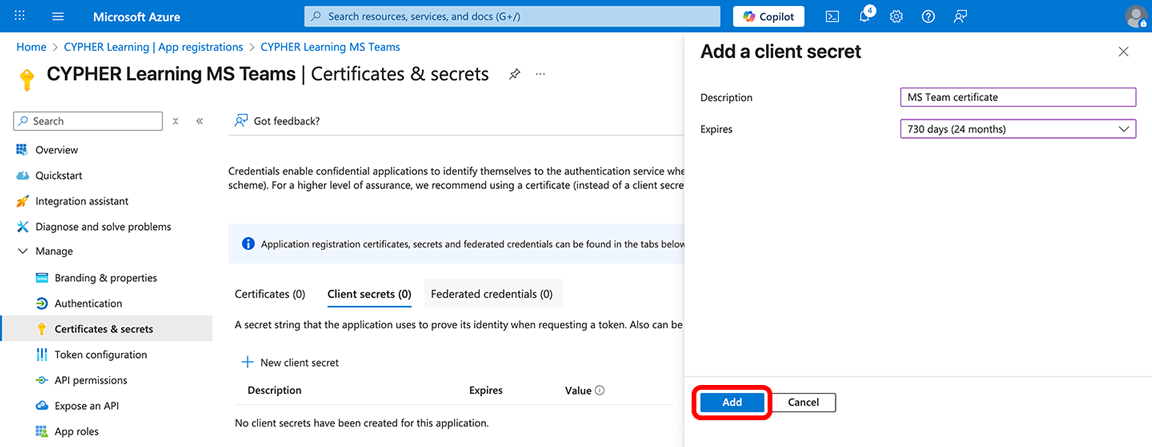

Azure portal, Certificates & secrets, with the Add button highlighted in the Add a client secret side menu

A new Client secret displays.
  1. Click the Copybutton for the Value field.
Next, you will navigate back to the CYPHER Learning platform.

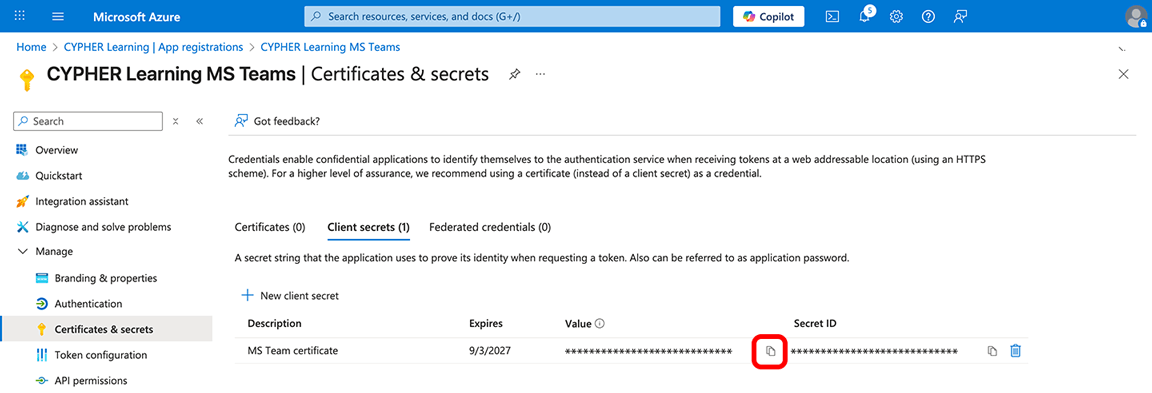

Azure portal, Certificates & secrets, Client secrets tab with the Copy icon highlighted next to the Value code

On the MS Teams Settings tab:
  1. Paste the Client secret Value in the Client secret field.
Then, navigate back to the Azure Certificates & secrets page.

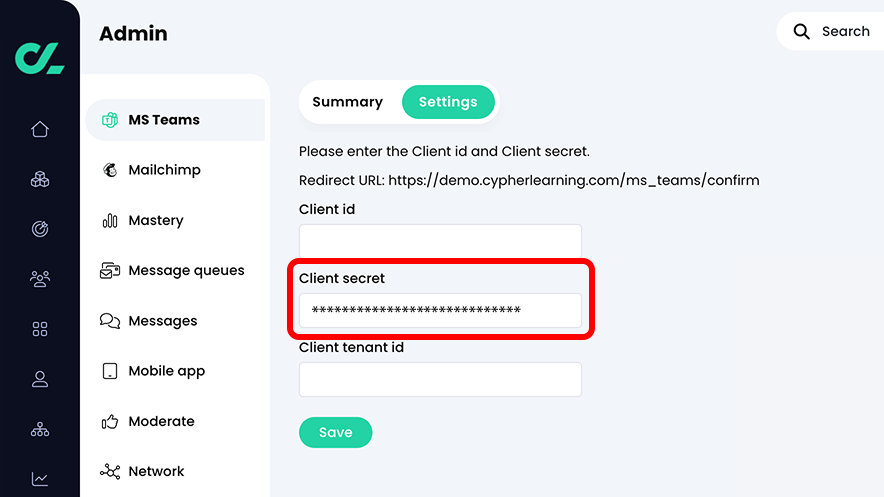

CYPHER platform, MS Teams, Settings tab with the Client secret entered and highlighted

On the Azure Certificates & secrets page:
  1. Click Overview from the left navigation menu.
  2. Copy the Application (client) ID value.
Then, navigate back to the CYPHER Learning platform.

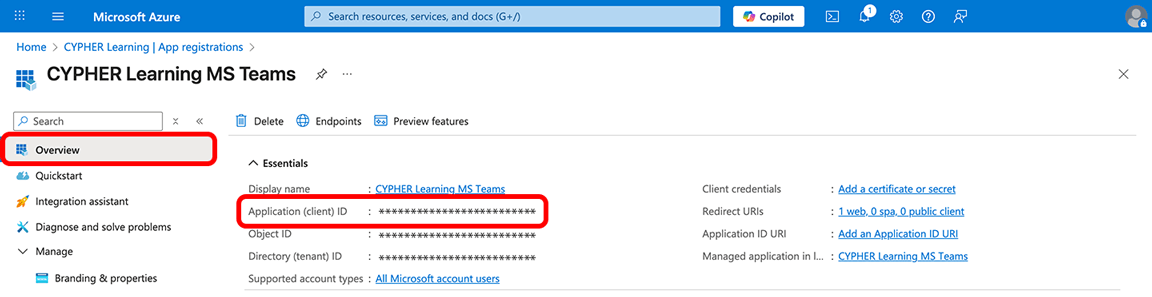

Azure portal, Overview highlighted on the left menu with the Application (client ID) code highlighted

On the MS Teams Settings tab:
  1. Paste the Application (client) ID value in the Client id field.
Then, navigate back to the Azure Certificates & secrets page.

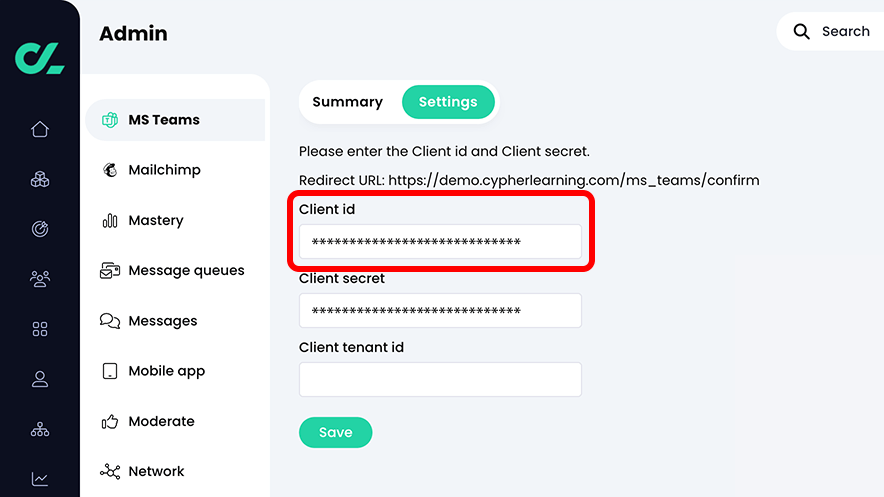

CYPHER platform, MS Teams, Settings tab with the Client id entered and highlighted

On the Azure Certificates & secrets page:
  1. Copy the Directory (tenant) ID value.
Then, navigate back to the CYPHER Learning platform.

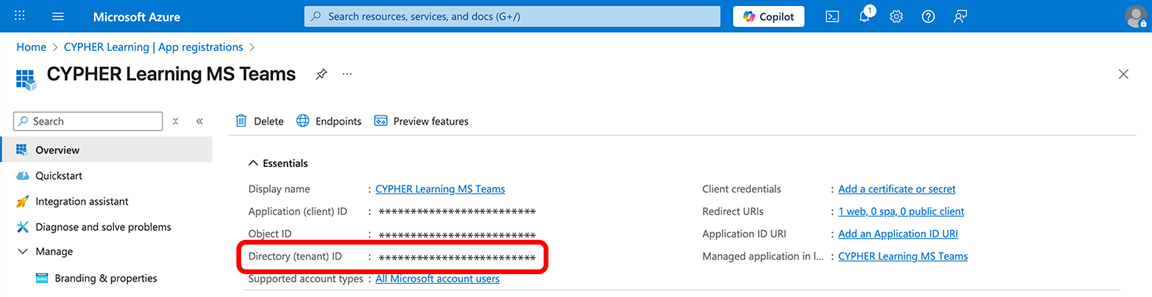

Azure portal, Overview page with the Directory (tenant) ID code highlighted

On the MS Teams Settings tab:
  1. Paste the Directory (tenant) ID value in the Client tenant id field.
  2. Click Save.
The MS Teams web conferencing gateway is now configured!

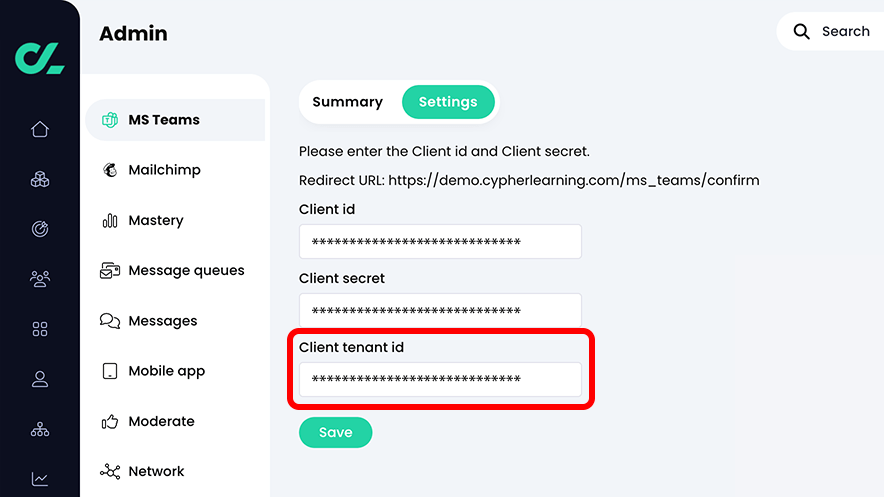

CYPHER platform, MS Teams, Settings tab with the Client tenant id entered and highlighted

Setting up a MS Teams integration

After the MS Teams web conferencing integration has been configured, you can create and insert a link to an MS Teams meeting using the HTML Editor on calendar events, content pages, assessments, and more. To add a MS Teams link using the HTML editor:
  1. Click the more  button on the toolbar secondary menu to open the advanced toolbar.
  2. Click the Create web conferencing  icon.
  3. Select MS Teams from the drop-down menu.

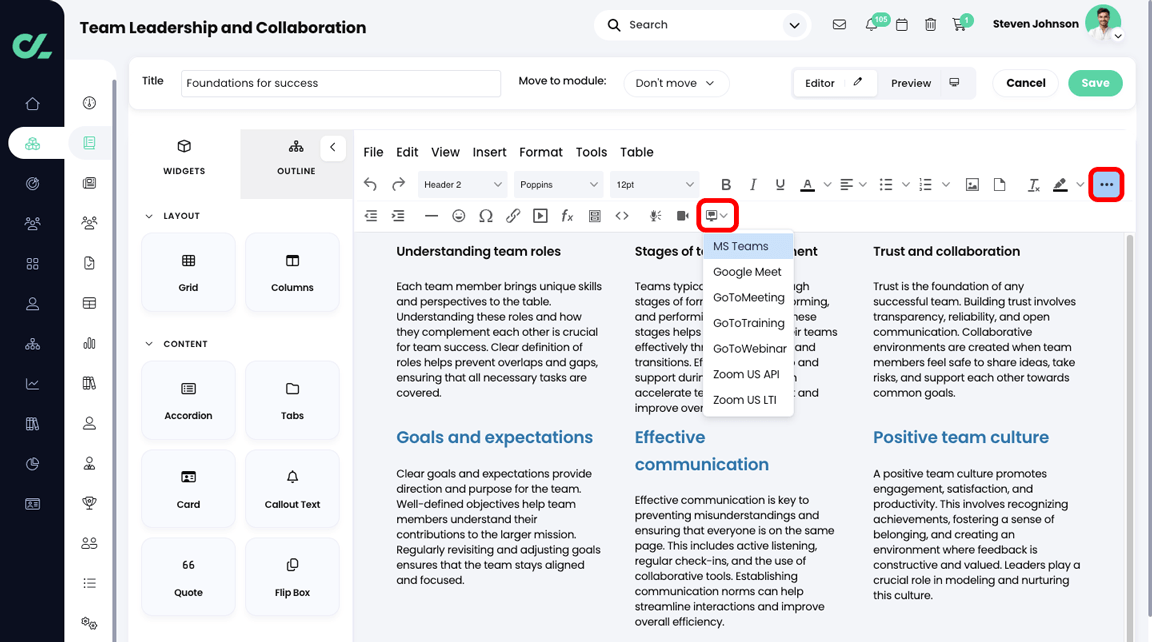

Course, module, section with the More icon highlighted and the Web conferencing icon highlighted and active in the HTML editor

When you click the icon for the first time, a sign-in box will open.
  1. Click the Sign in button.

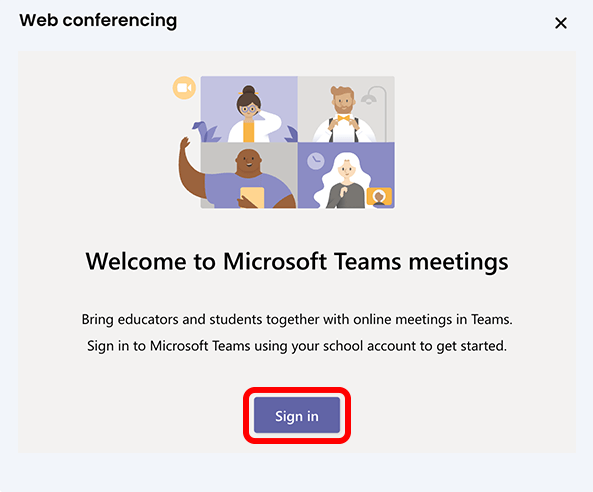

Microsoft Teams Web conferencing pop-up with the Sign in button highlighted

Enter your Microsoft 365 credentials.

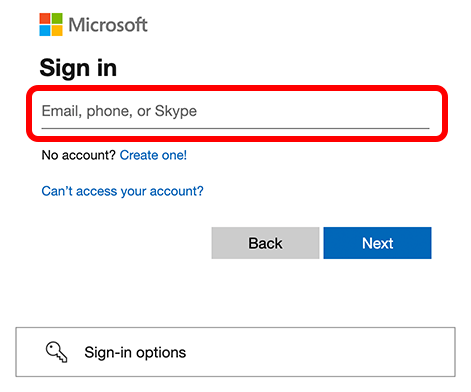

Microsoft Sign in pop-up with the Email, phone, or Skype field highlighted

After signing-in:
  1. Click the Create meeting link button.

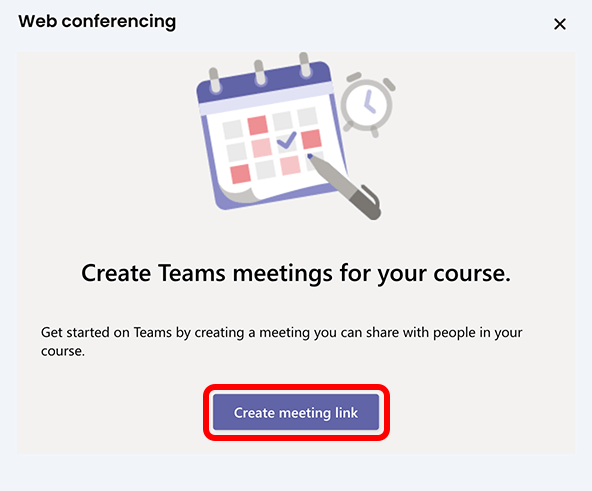

Microsoft Teams Web conferencing pop-up with the Create meeting link button highlighted

The Web conferencing pop-up displays.
  1. Enter the details of the meeting.
  2. Click Create.

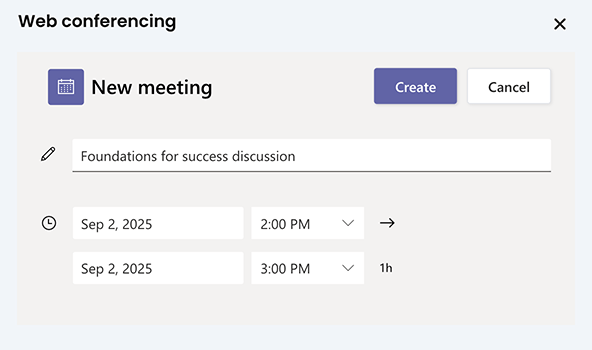

Microsoft Teams Web conferencing New meeting pop-up

The link to the meeting is inserted onto the page. The default text for the link contains the name of the meeting together with its start and end times. To save the updated content:

  1. Click Save.

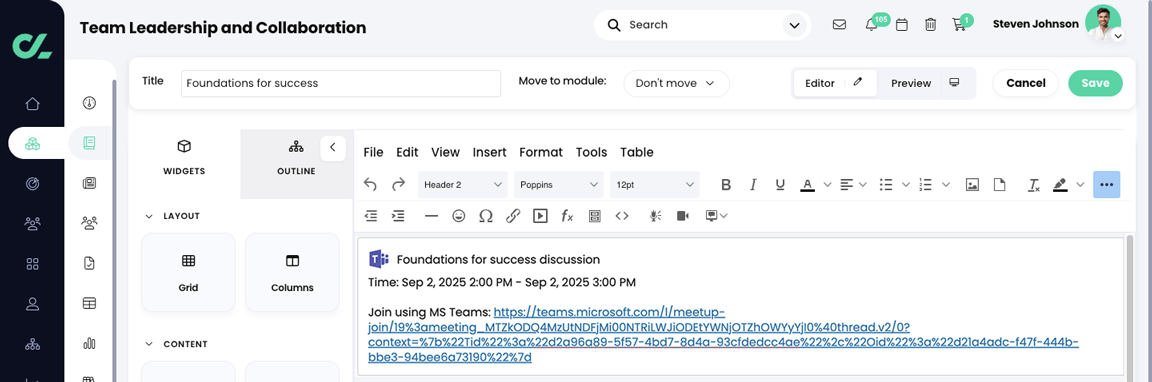

Course, module, section a Microsoft Teams meeting added to the section in Edit mode

After saving the content page, the link becomes active.

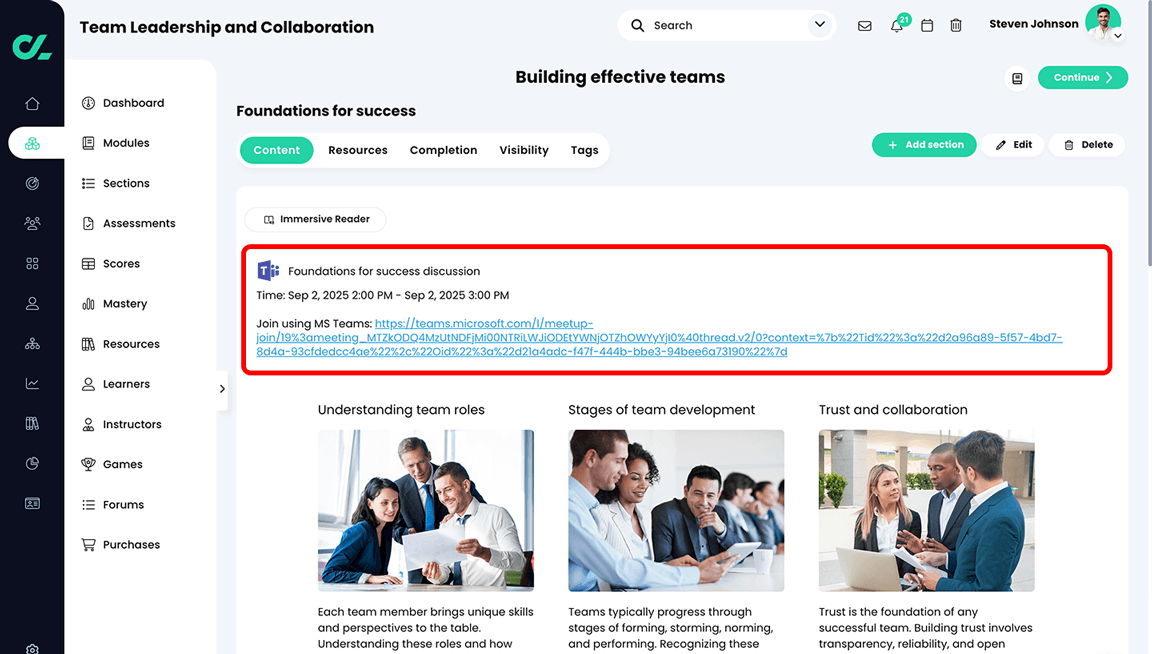

Course, module, section a Microsoft Teams meeting added to the section

When users click the link, a new tab opens, providing users with options on how to access the meeting.
  1. Click Continue on this browser to join the meeting using a web browser.
  2. Click Join on the Teams app if you have the MS Teams app installed on your desktop or device.

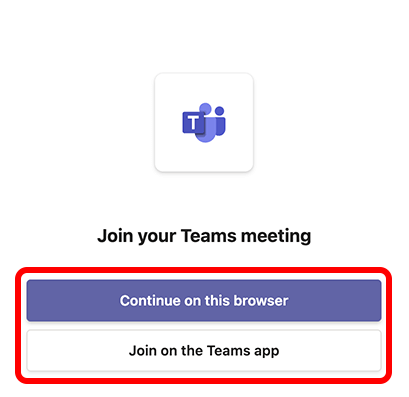

Join your Teams meeting pop-up with the Continue on this browser and Join on the Teams app buttons highlighted

The Microsoft Teams pre-join screen displays.

  1. Enter your name and select your audio and video settings.
  2. Click Join now when you are ready to join the meeting.

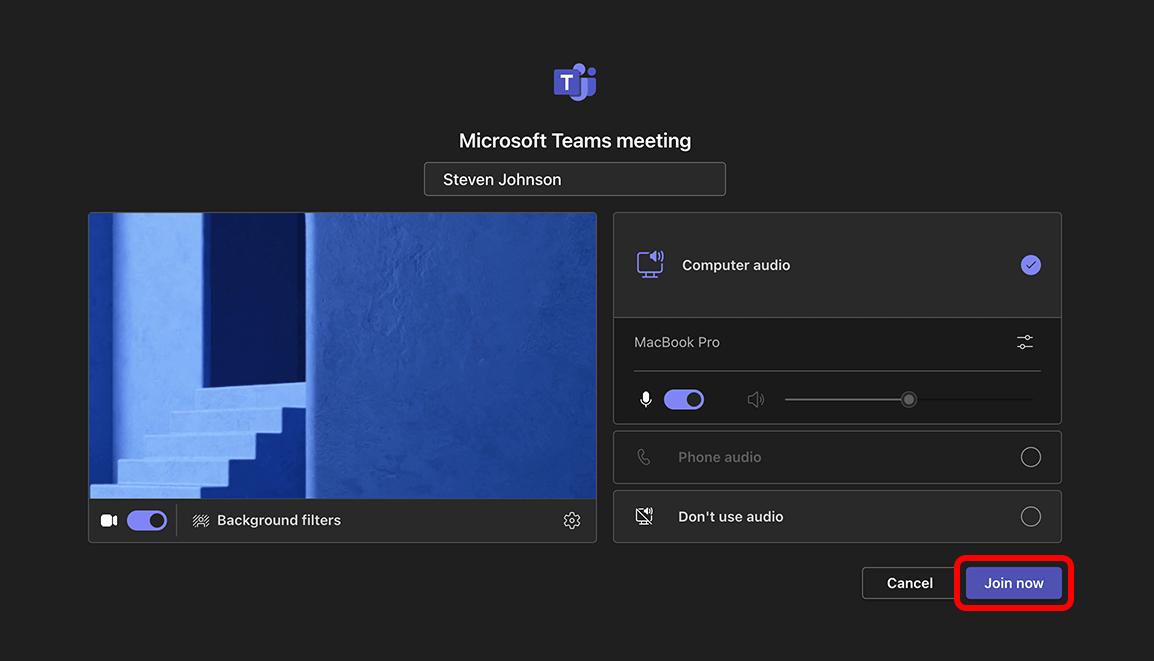

Microsoft Teams meeting application with the Join now button highlighted

Automated Attendance

The automated MS Teams attendance is a feature that automatically updates the attendance list in a course with the attendees list from an MS Teams conferencing section. To utilize this feature, you must have:

  • The MS Teams app installed from the App center.
  • A configured MS Teams web conferencing gateway.
  • A class with attendance enabled.
